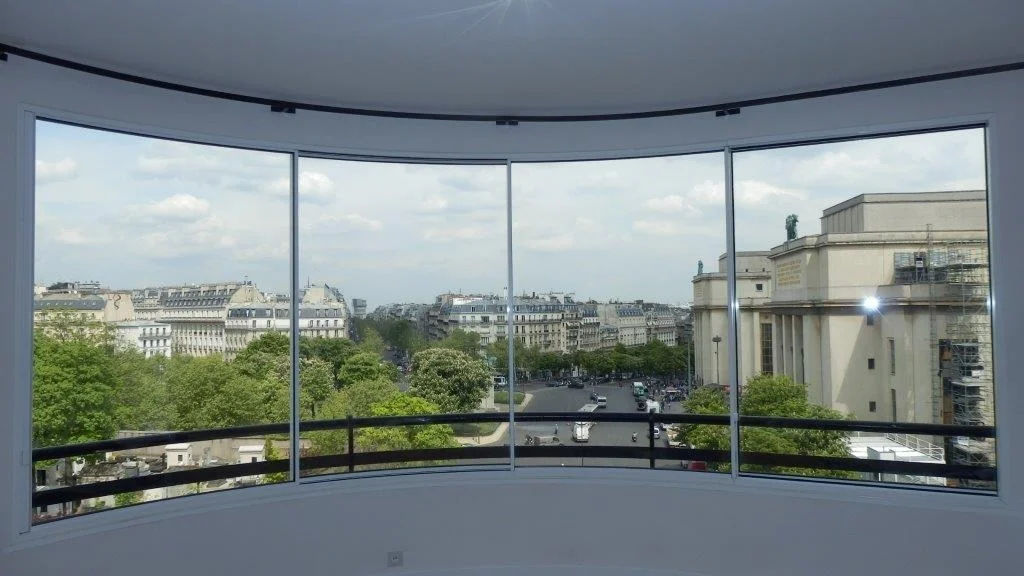

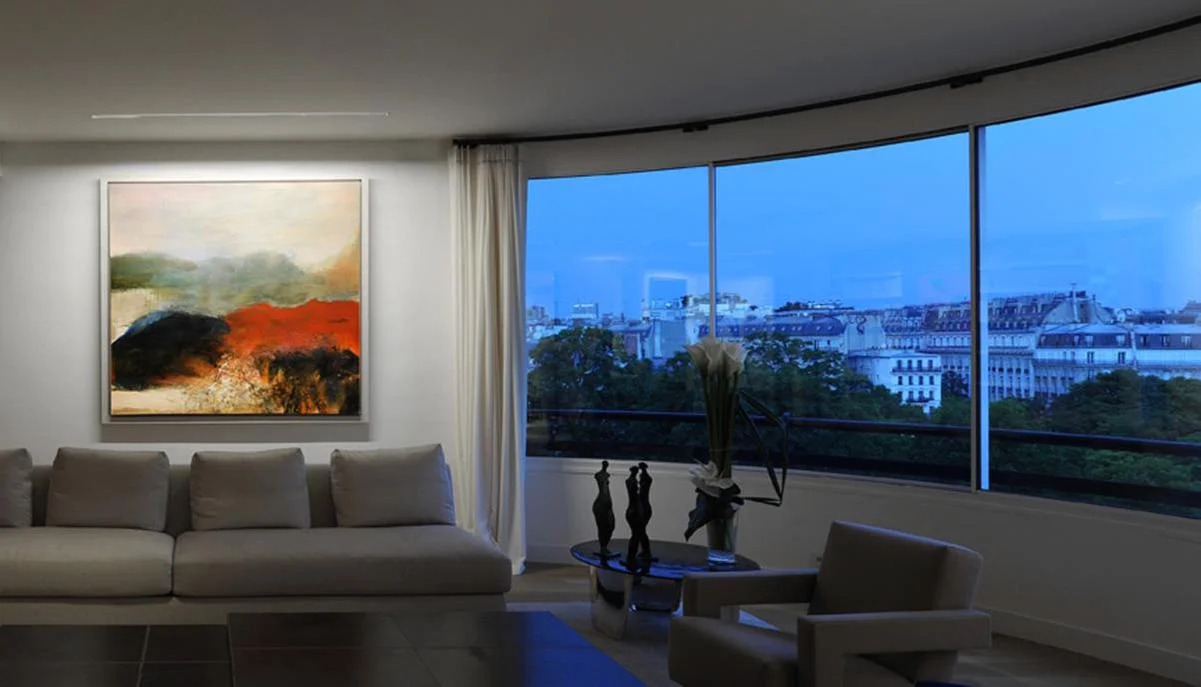

CURVED TH+ RANGE



The curved application allows a radius of 3 m for mobile elements and 1.5 m for fixed. This application is only available with anodised treatment to guarantee the precision of the curve.




SPECIFICATIONS





Rail + Frames

  • Recessed and flush in the floor, wall and ceiling
  • Frame just 140 mm wide for a Birail (Mono: 64 mm + 12 seal)
  • Saline treatment specially adapted for costal projects

Clousure Mechanism

  • Standard closure mechanism (029, 035, 005)
  • Two point closure button
  • Cylinder
  • Range of options for electric closure
  • Alarms



Vertical connection

  • 22 mm
  • Reinforced for very windy locations or installation at high altitudes

Glazing

  • 32 mm or 44 mm
  • Panel size up to 10.1 m² (2.4 x 4.2 m) vertical or horizontal

Configuration

  • Curved (anodised treatment only)
  • Fixed (up to 10.1 m²)
  • Open angle
  • TH+ invisible option
