In the fixed or pivoting options, the width of the vertical profile is 18 mm. Locking and sealing assured by a mobile rack blade or cylinder with key.


PIVOT TH+ RANGE

PIVOT



Using 32 or 44 mm double or triple glazing, the Vitrocsa TH+ range is for sliding window surfaces up to 18 m².

The excellent insulating properties of the profiles, in combinations with the glass, enable current low energy consumption standards to be met.




SPECIFICATIONS





Rail + Frames

  • Embedded and concealed in the floor, wall and ceiling
  • Frame just 140 mm wide for a Birail (Mono: 64 mm + 12 seal)
  • Saline treatment specially adapted for costal projects

Clousure Mechanism

  • Standard closure mechanism (029, 035, 005)
  • Two point closure button
  • Aluminum handle
  • Range of options for electric closure
  • Alarms



Vertical connection

  • 20 mm
  • Reinforced for very windy locations or installation at high altitudes

Glazing

  • 32 mm or 44 mm
  • Panel size up to 18 m² (6 x 3.1 m) vertical or horizontal

Configuration

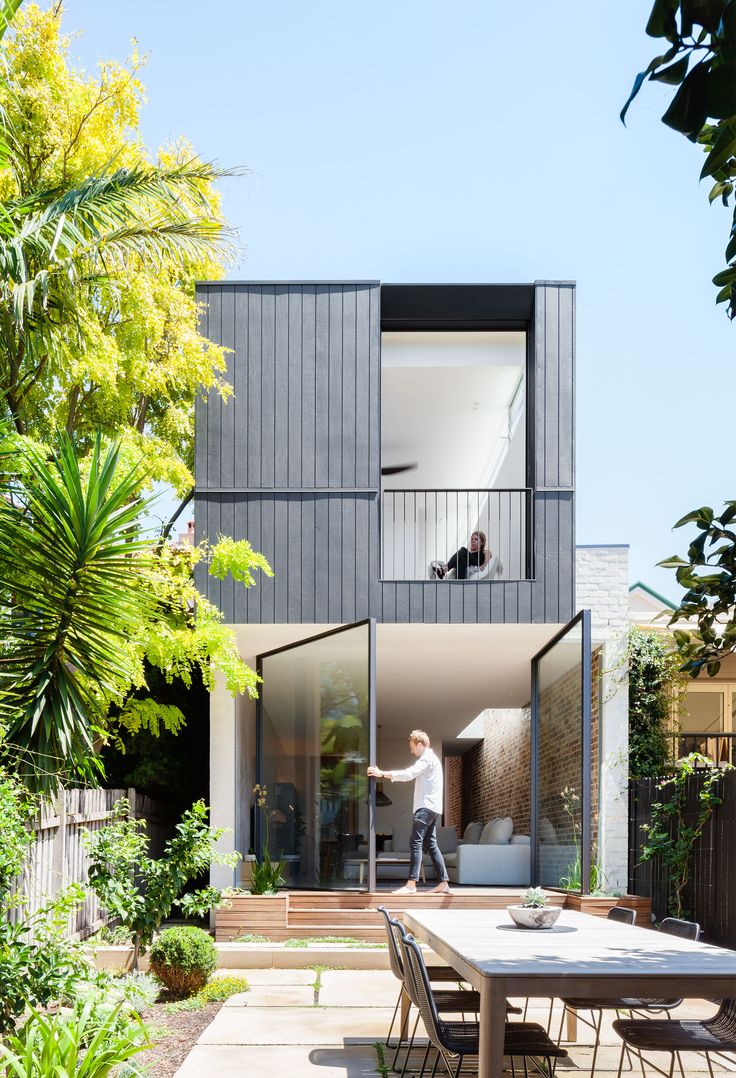

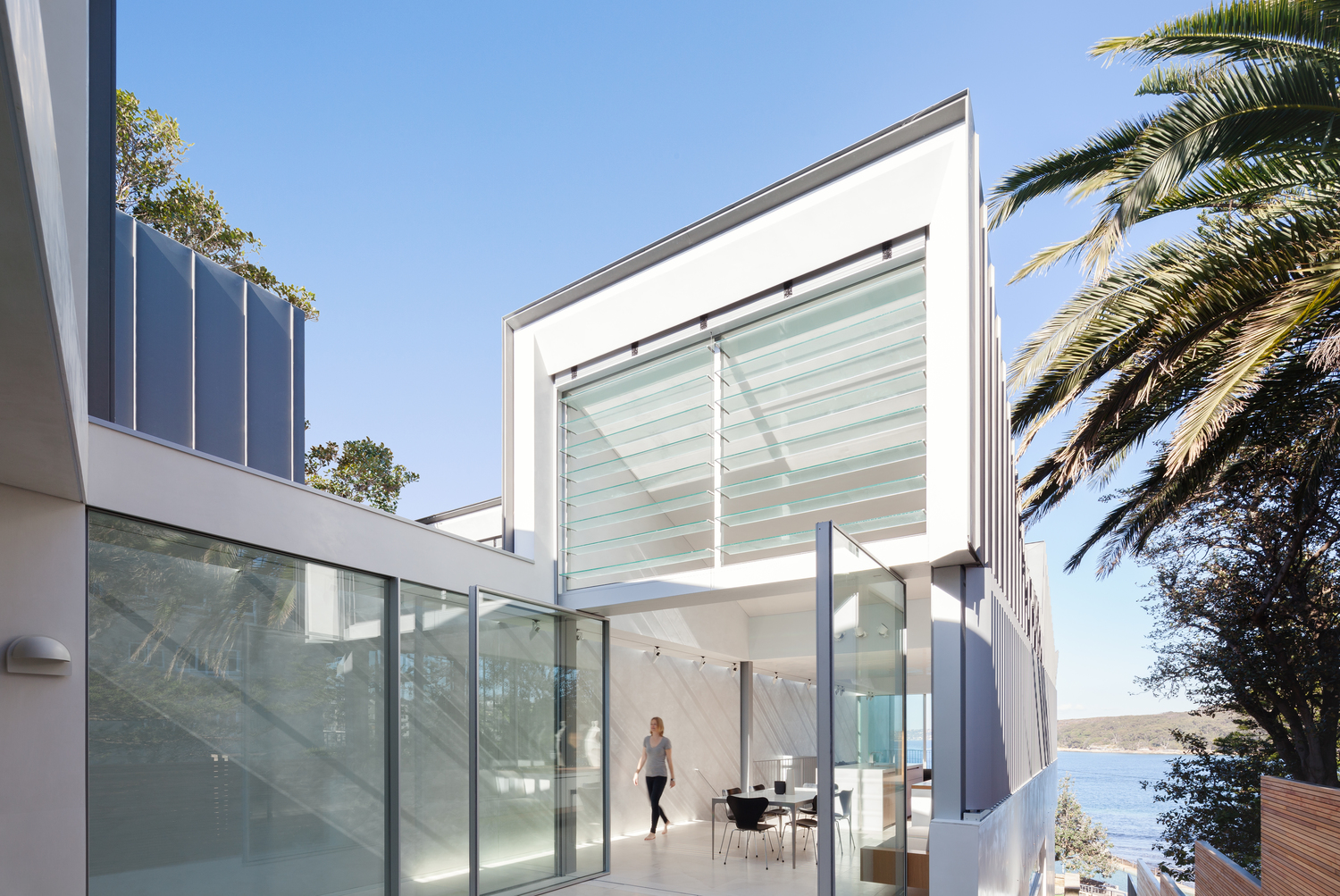

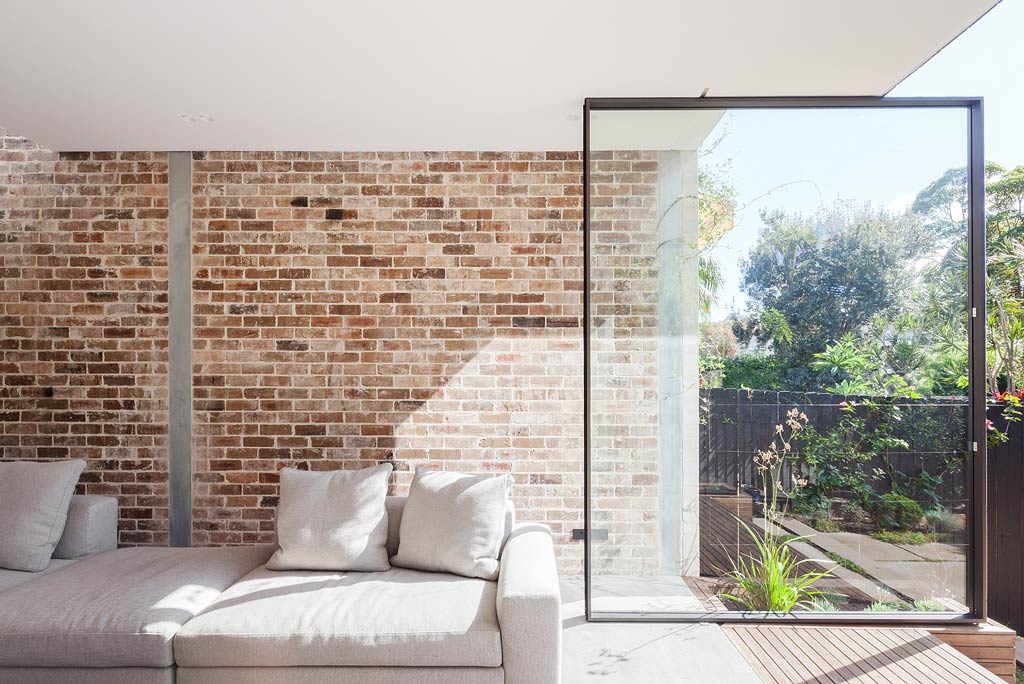

  • Pivoting  (up to 12m² )
  • A system with two identical glass panes which counter-balance one another;
  • A counterweight system on the side (integrated into the finishes) which enable an infinite range of configurations.
