CURVED RANGE

 Lieu : Manufacture Piaget - Plan-les-Ouates - Genève - Suisse / Droits d'utilisation uniquement pour VITROCSA - ORCHIDEES CONSTRUCTIONS

CURVED RANGE

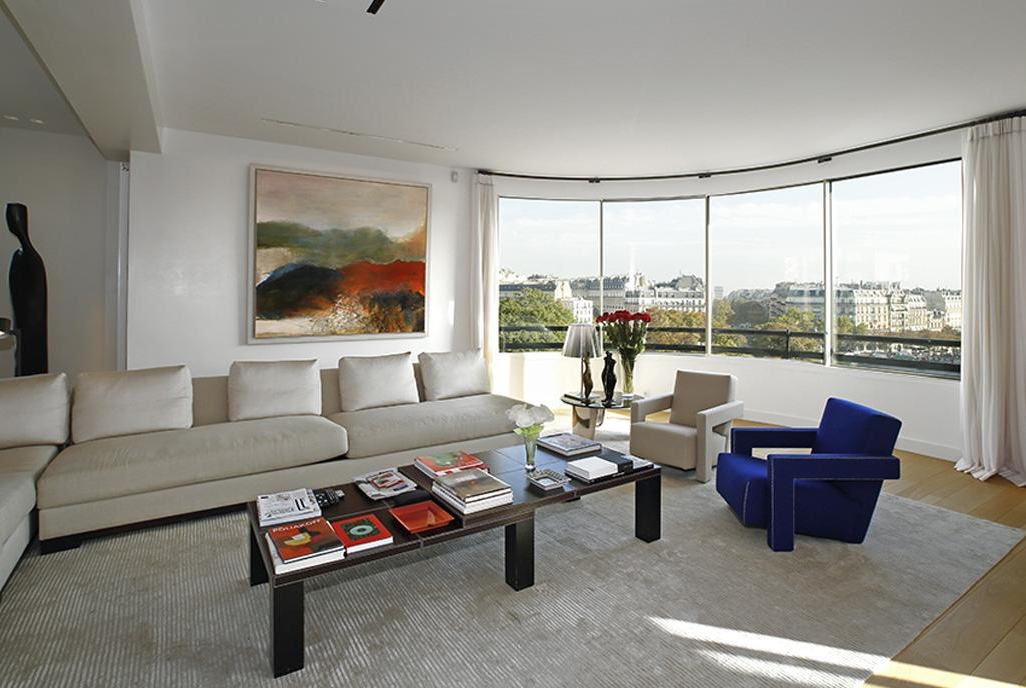

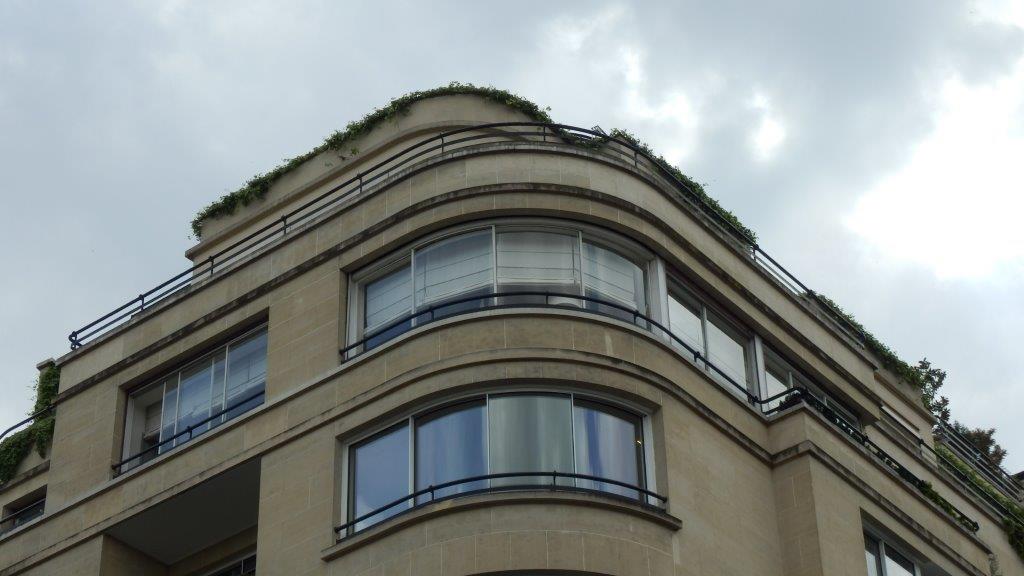

The curved application allows a radius of 3m for mobile elements and 1.5m for fixed. This application is only available with anodised treatment to guarantee the precision of the curve.



SPECIFICATIONS

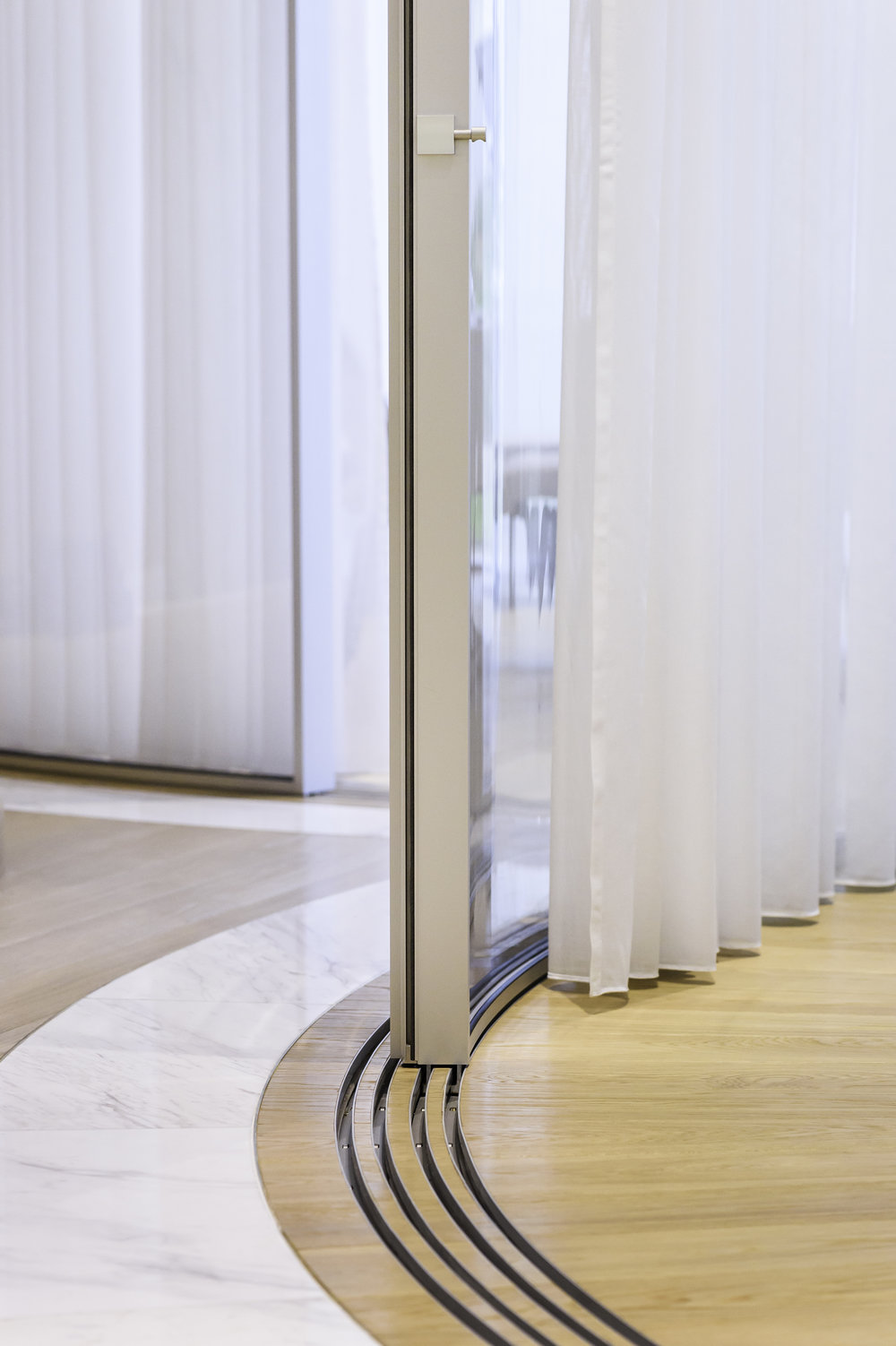

Rail + Frames

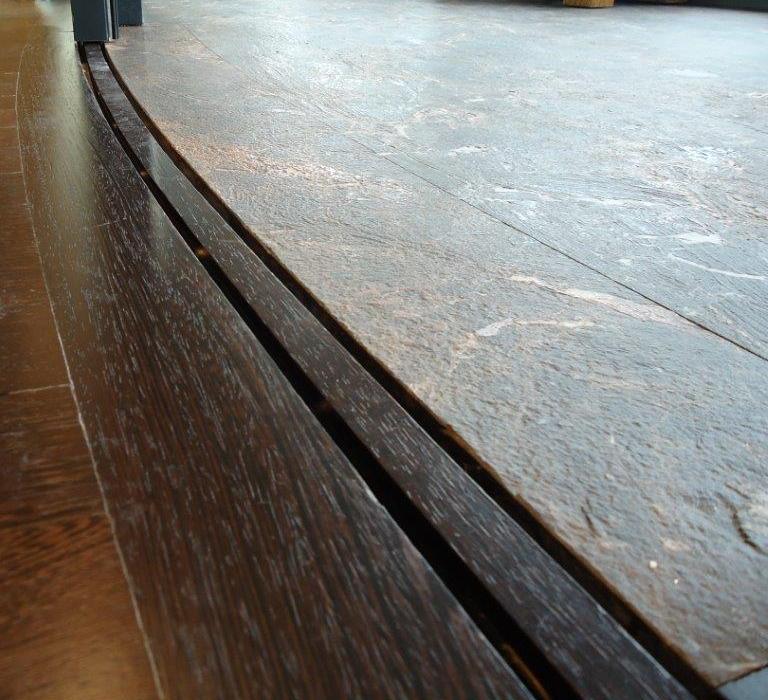

  • Recessed and flush in the floor, wall and ceiling.
  • Frame just 140.mm wide for a Birail (Mono: 64.mm + 12 seal).
  • Saline treatment specially adapted for coastal projects.

Vertical connection

  • 20mm.
  • Reinforced for very windy locations or installation at high altitudes.

Configuration


  • Curved (anodised treatment only).
  • Fixed (up to 10.1 m²).
  • Open angle.
  • TH+ invisible option.

  • Standard closure mechanism (029, 035, 005).
  • Two point closure button.
  • Cylinder.
  • Range of options for electric closure.
  • Alarms.

Closure Mechanism


  • 32mm or 44 mm.
  • Panel size up to 10.1m² (2.4 x 4.2 m) vertical or horizontal.

Glazing
