TH+ INVISIBLE RANGE


TH+ INVISIBLE RANGE

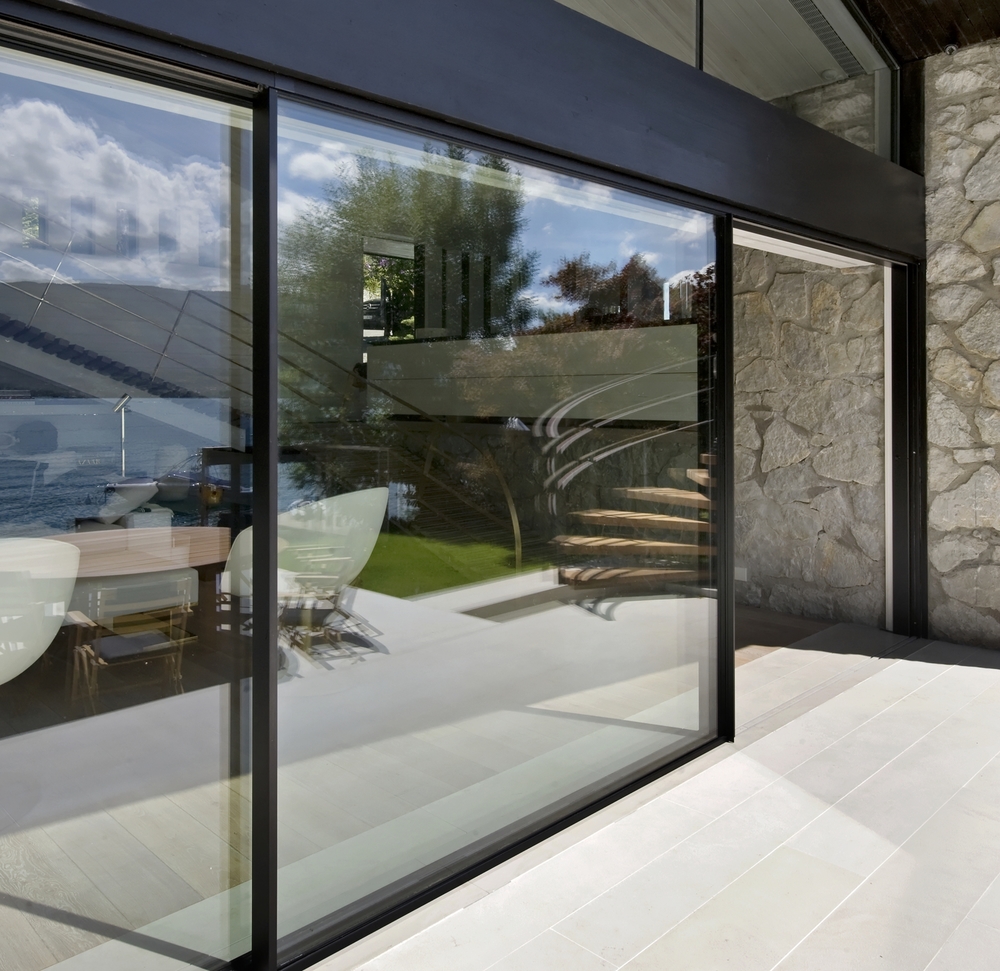

This application removes the need for an internal or external architectural enclosure. It uses 32 mm or 44 mm double or triple glazing for sliding glazed surfaces up to 18 m².



SPECIFICATIONS



Rail + Frames

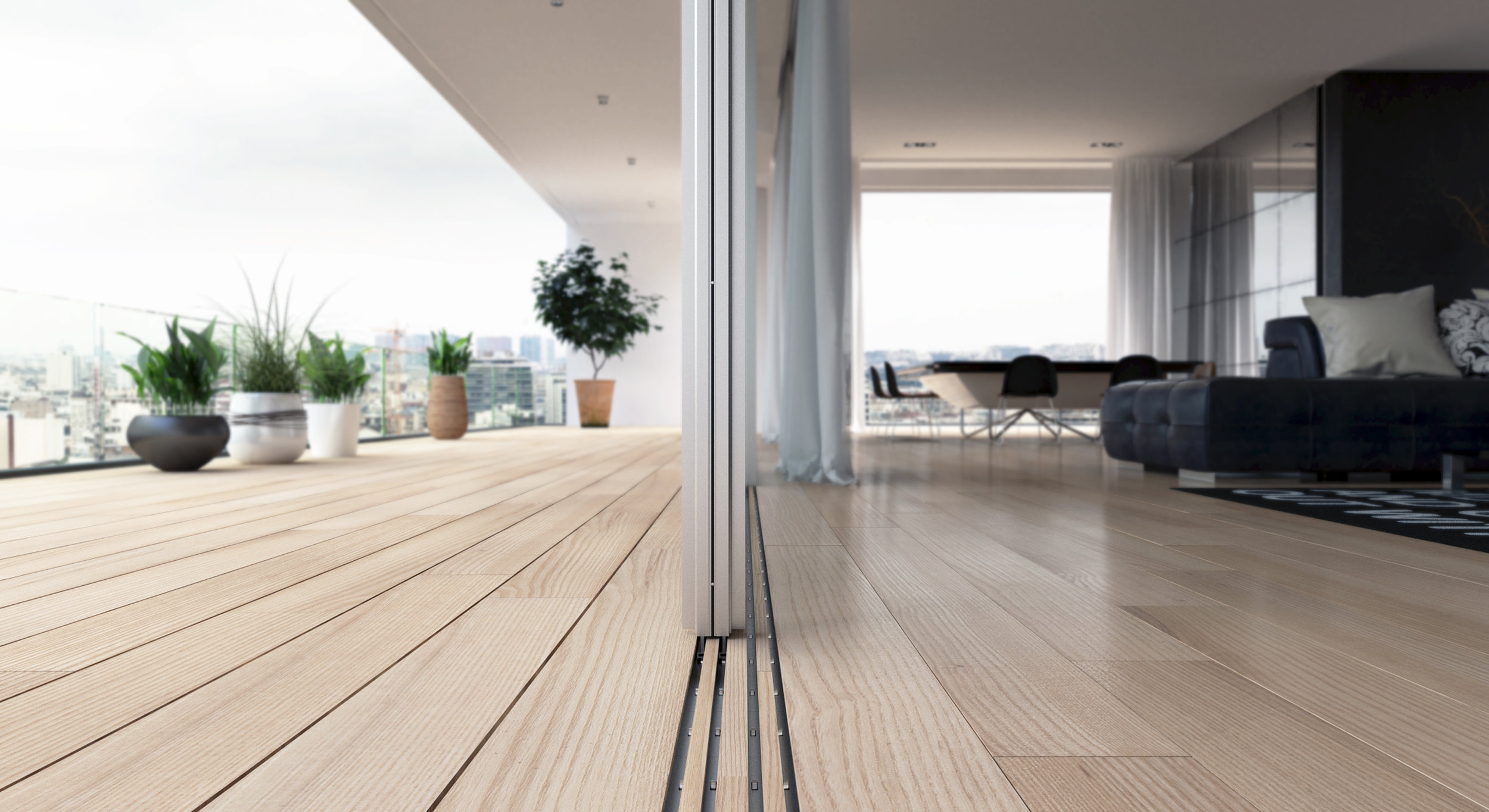

  • Recessed and concealed in the floor, wall and ceiling.
  • Frame just 140 mm wide for a Birail (Mono: 64 mm + 12 seal).
  • Saline treatment specially adapted for costal projects.

Vertical connection

  • 20 mm.
  • Reinforced for very windy locations or installation at high altitudes.

Configuration


  • Sliding invisible frame (up to 18 m²).
  • Fixed (up to 18 m²).
  • Open angle.
  • Pocket.
  • Motorisation.
  • Mosquito net.

  • Standard closure mechanism (029, 035, 005).
  • Two point closure button.
  • Cylinder.
  • Range of options for electric closure.
  • Alarms.

Closure Mechanism


  • 32 mm or 44 mm.
  • Panel size up to 18 m² (6 x 3.1 m) vertical or horizontal.

Glazing
