TURNABLE


TURNABLE

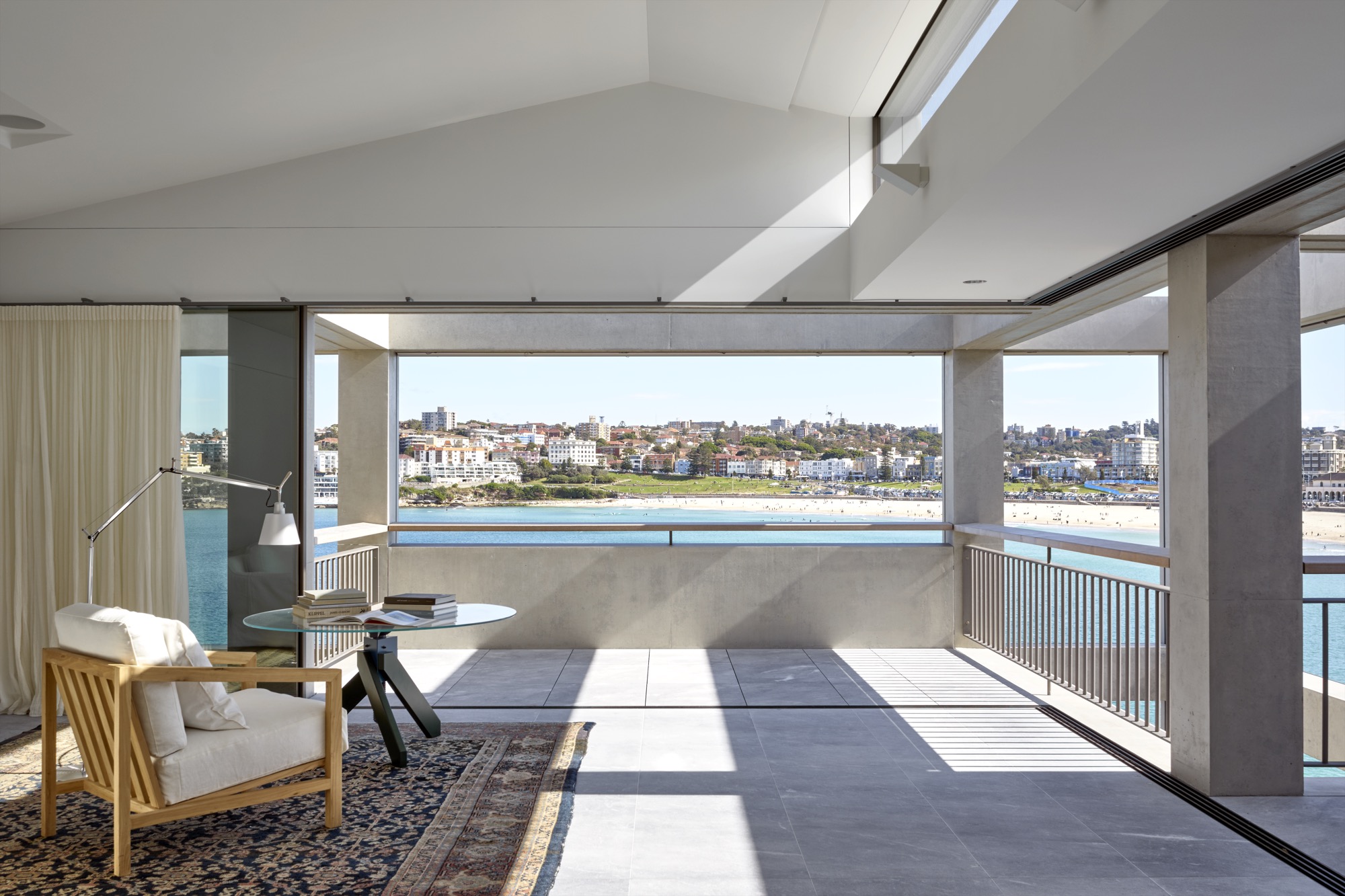

Our new Turnable Corner system has been developed to optimise space by using a roller principle which completely frees up the glazed components. This major architectural solution frees up the surface and corner space by enabling the panes to be stored in a dedicated area.

The glass panel can be dimensioned up to a surface area of 6 m² with a weight of 250 kg.

Using 32 mm or 44 mm double or triple glazing, the Vitrocsa TH+ range is for sliding window surfaces up to 18 m².

The excellent insulating properties of the profiles, in combinations with the glass, enable current low energy consumption standards to be met.



SPECIFICATIONS



Rail + Frames

  • Embedded and concealed in the floor, wall and ceiling.
  • Frame just 140 mm wide for a Birail (Mono: 64 mm + 12 seal).
  • Saline treatment specially adapted for coastal projects.

Vertical connection

  • 20 mm.
  • Reinforced for very windy locations or installation at high altitudes.

Configuration


  • Turnable Corner (up to 250 kg per pane, 6 m²).
  • Invisible ceiling finish available as an option.

  • Standard closure mechanism (029, 035, 005).
  • Two point closure button.
  • Range of options for electric closure.
  • Alarms.

Closure Mechanism


  • 32 mm or 44mm.
  • Panel size up to 6 m².

Glazing
